MIKE Workbench¶

File: DHI.Services.Provider.MC.dll

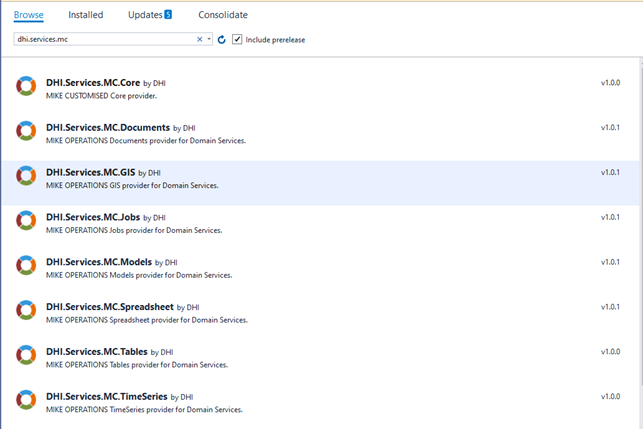

From MIKE OPERATIONS, NuGet packages for accessing MIKE WORKBENCH, are published on the DHI NuGet server: http://dhi-nuget-server.azurewebsites.net/nuget

The following packages are published:

DHI.Services.MC.Core
Core functionality containing connection information.
DHI.Services.MC.Documents
Access documents in the document manager of MIKE WORKBENCH.
DHI.Services.MC.GIS
Access GIS data in the GIS manager of MIKE WORKBENCH.
DHI.Services.MC.Jobs
Access and run jobs in the job manager of MIKE WORKBENCH.
DHI.Services.MC.Models
Access and run models, scenarios and simulations in the scenario manager of MIKE WORKBENCH.
DHI.Services.MC.Spreadsheets
Access spreadsheets in the spreadsheet manager of MIKE WORKBENCH.
DHI.Services.MC.Tables
Read any table of the MIKE OPERATIONS database.
DHI.Services.MC.TimeSeries
Access time series in the time series manager of MIKE WORKBENCH.

To use the web API, it is required that the NuGet associated WebAPI package is installed.

E.g. for spreadsheets, install: DHI.Services.Spreadsheets.WebAPI

The following sections shows samples using the endpoints of the repositories of the MC NuGet packages.

For more information about the Domain Services Web API, please refer to the section Domain Services on DHI Developers web site: https://dhi-developer-documentation.azurewebsites.net/

The MIKE Workbench Web API provides access to the following managers.

Time Series Manager
GIS Manager
Spreadsheet Manager
Job Manager (task and job repositories)
Document Manager

Introduction¶

The MIKE WORKBENCH Web API closely follows the Web API.

Use Swagger (https://swagger.io) to get supported end points for the web site installed.

E.g. https://domainservices.dhigroup.com/swagger/index.html

The following section provides samples on using the API.

The following repository types are supported:

Time Series
GIS
Spreadsheets
Documents
Worker
Tasks

Time Series Repository¶

Connection¶

    "mc-timeseries": {
        "$type": "DHI.Services.TimeSeries.Web.GroupedDiscreteTimeSeriesServiceConnection, DHI.Services.TimeSeries.Web",
        "ConnectionString": "runtimeconfig=OperationsWeb;host=localhost;port=5432;database=Sava75",
        "RepositoryType": "DHI.Services.Provider.MC.TimeSeriesRepository, DHI.Services.Provider.MC",
        "Name": "MIKE WORKBENCH time series connection",
        "Id": "mc-timeseries"
    },

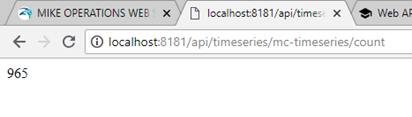

Time series count¶

Returns the number of time series in the time series manager of MIKE OPERATIONS.

http://localhost:8181/api/timeseries/mc-timeseries/count

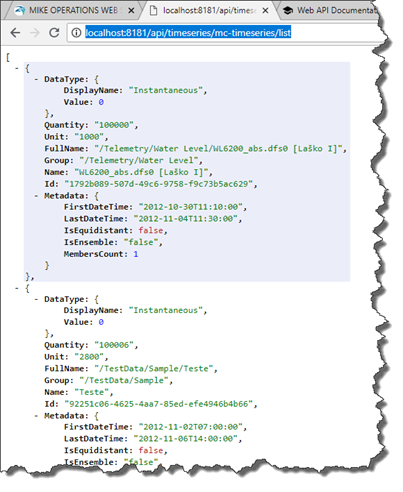

List all time series¶

Gets a list of all time series in the time series manager of MIKE WORKBENCH.

http://localhost:8181/api/timeseries/mc-timeseries/list

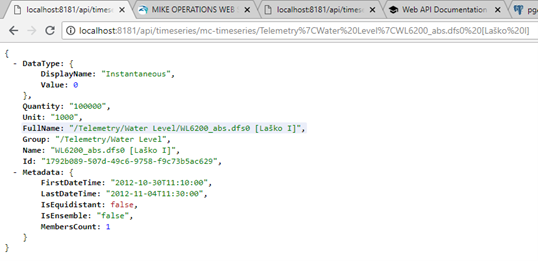

Get time series¶

Gets time series information for a single time series.

Note that in the path to the time series, slash / is replaced with |

http://localhost:8181/api/timeseries/mc-timeseries/Telemetry%7CWater%20Level%7CWL6200_abs.dfs0%20[La%C5%A1ko%20I]

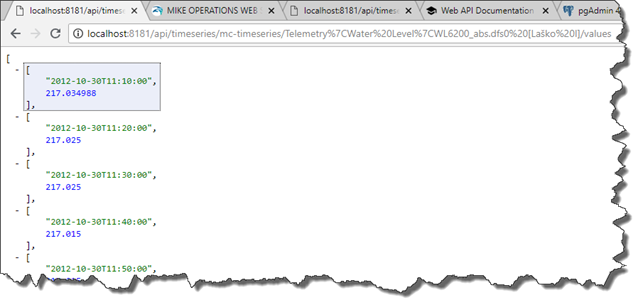

Get time series values¶

Gets all time series values of a time series.

http://localhost:8181/api/timeseries/mc-timeseries/Telemetry%7CWater%20Level%7CWL6200_abs.dfs0%20[La%C5%A1ko%20I]/values

GIS Repository¶

Connection¶

    "mc-gis": {
        "$type": "DHI.Services.GIS.Web.GroupedGisServiceConnection, DHI.Services.GIS.Web",
        "ConnectionString": "host=localhost;port=5432;database=Sava75",
        "RepositoryType": "DHI.Services.Provider.MC.GISRepository, DHI.Services.Provider.MC",
        "Name": "MIKE WORKBENCH gis connection",
        "Id": "mc-gis"
    },

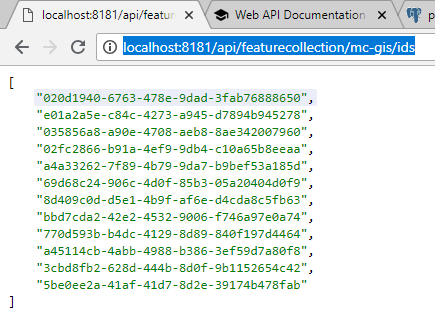

Get ids¶

Gets all ids of the feature classes in the GIS manager of MIKE OPERATIONS.

http://localhost:8181/api/featurecollection/mc-gis/ids

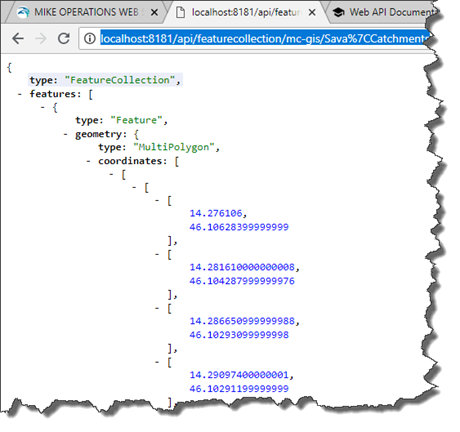

Get feature class¶

Get information about a single feature class from the full path of the feature class.

http://localhost:8181/api/featurecollection/mc-gis/Sava%7CCatchments

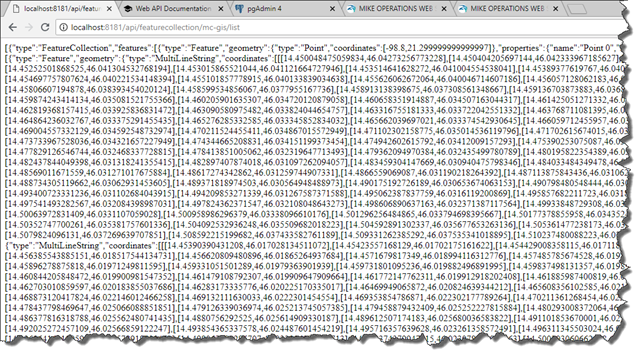

List all feature classes¶

Gets information about all feature classes in the GIS manager of MIKE OPERATIONS.

http://localhost:8181/api/featurecollection/mc-gis/list

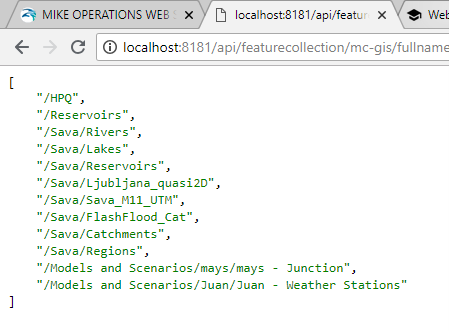

Get full names¶

Gets the full names of all feature classes in the GIS manager.

http://localhost:8181/api/featurecollection/mc-gis/fullnames

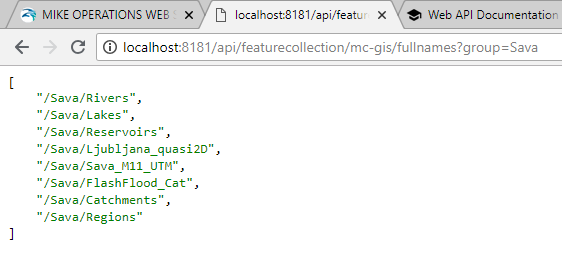

Get full names of group¶

Gets the full names of a specified group.

http://localhost:8181/api/featurecollection/mc-gis/fullnames?group=Sava

Spreadsheet Repository¶

Connection¶

    "mc-spreadsheet": {
        "$type": "DHI.Services.Spreadsheets.Web.SpreadsheetServiceConnection, DHI.Services.Spreadsheets.Web",
        "ConnectionString": "host=localhost;port=5432;database=Sava75",
        "RepositoryType": "DHI.Services.Provider.MC.SpreadsheetRepository, DHI.Services.Provider.MC",
        "Name": "MIKE WORKBENCH spreadsheet connection",
        "Id": "mc-spreadsheet"
    },

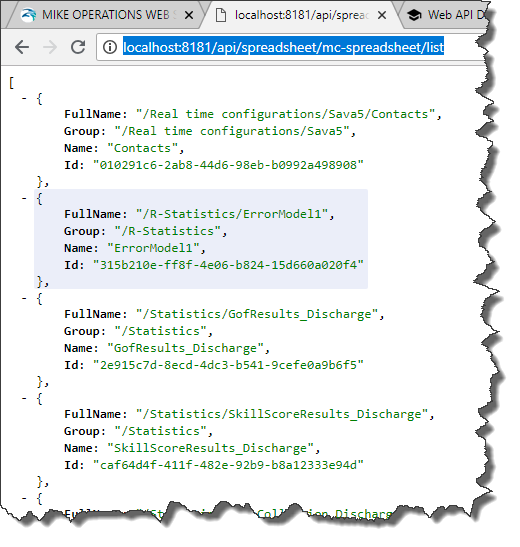

List spreadsheets¶

Gets a list of all spreadsheets in the spreadsheet manager of MIKE OPERATIONS.

http://localhost:8181/api/spreadsheet/mc-spreadsheet/list

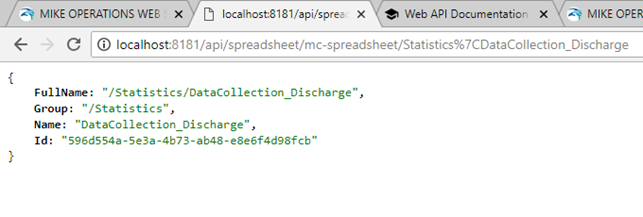

Get spreadsheet info¶

Gets information about a single spreadsheet.

http://localhost:8181/api/spreadsheet/mc-spreadsheet/Statistics%7CDataCollection_Discharge

Task Repository (job)¶

Version: 2.1

The task repository provides access to jobs in the job manager of MIKE OPERATIONS.

Connection¶

    "mc-task": {
        "$type": "DHI.Services.Jobs.Web.TaskServiceConnection, DHI.Services.Jobs.Web",
        "ConnectionString": "host=localhost;port=5432;database=Sava75",
        "RepositoryType": "DHI.Services.Provider.MC.TaskRepository, DHI.Services.Provider.MC",
        "Name": "MIKE OPERATIONS task connection",
        "Id": "mc-task"
    }

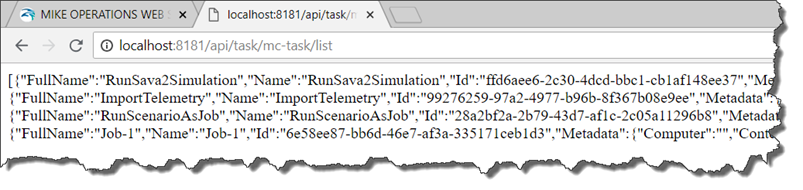

Get tasks¶

Gets all jobs in the job manager of MIKE OPERATIONS.

http://localhost:8181/api/task/mc-task/list

Job Repository (Job Instance)¶

Version: 2.1 The job repository provides access to job instances of a job in the job manager of MIKE OPERATIONS.

Connection¶

    "mc-job": {
        "$type": "DHI.Services.Jobs.Web.JobServiceConnection, DHI.Services.Jobs.Web",
        "JobRepositoryConnectionString": "host=localhost;port=5432;database=Sava75",
        "JobRepositoryType": "DHI.Services.Provider.MC.JobRepository, DHI.Services.Provider.MC",
        "TaskRepositoryConnectionString": "host=localhost;port=5432;database=Sava75",
        "TaskRepositoryType": "DHI.Services.Provider.MC.TaskRepository, DHI.Services.Provider.MC",
        "Name": "MIKE OPERATIONS job connection",
        "Id": "mc-job"
    },

Count jobs (job instances)¶

Counts the number of job instances in the job manager.

http://localhost:8181/api/job/mc-job/count

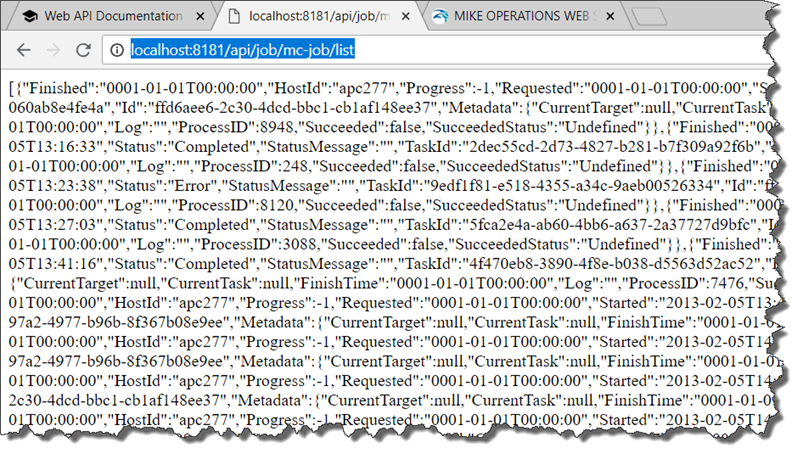

Get all jobs (job instance)¶

Gets all job instances in the job manager of MIKE OPERATIONS.

http://localhost:8181/api/job/mc-job/list

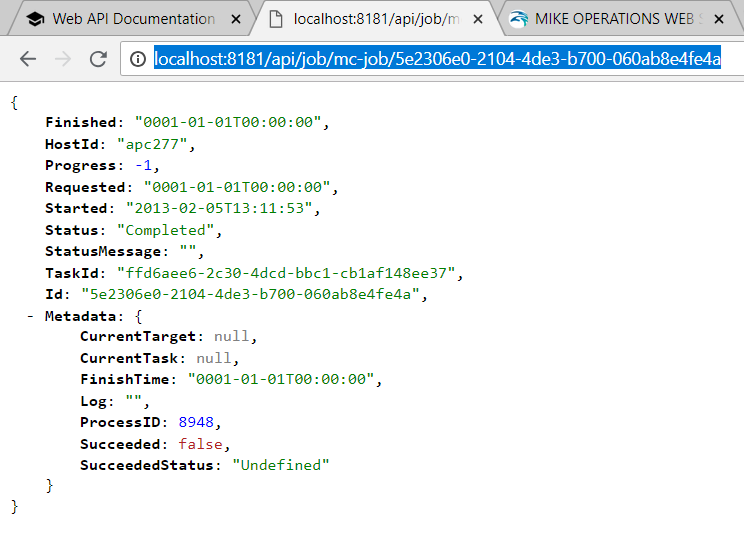

Get job (job instance)¶

Gets a single job instance in the job manager from the id of the job instance.

http://localhost:8181/api/job/mc-job/5e2306e0-2104-4de3-b700-060ab8e4fe4a

Making queries¶

The Job repository supports making queries.

The following query parameters are support: - Task
The id of the task (id of the job in the job manager) from the Task Repository. - Since
Date and time from where the job instance should be retrieved. Job Manager: ExecutedAt of the job instance is checked. - Status
The status of the job instance. The following status types are supported. - Pending
Job Manager: NotStarted - InProgress
Job Manager: Running - Completed
Job Manager: FinishedSuccess, FinishedError, FinishedUnknown, Terminated - Error
Job Manager: FinishedError - Unknown
Job Manager: FinishedUnknown

http://localhost:8181/api/job/mc-job/list?status=InProgress

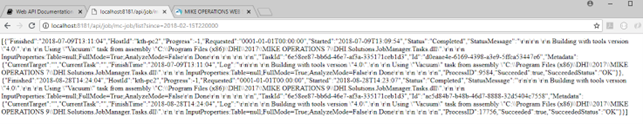

http://localhost:8181/api/job/mc-job/list?since=2014-02-15T220000

Document Repository¶

The document repository provides access to documents in the documents manager of MIKE OPERATIONS.

Connection¶

    "mc-doc": {
        "$type": "DHI.Services.Documents.Web.DocumentServiceConnection, DHI.Services.Documents.Web",
        "ConnectionString": "host=localhost;port=5432;database=Sava75",
        "RepositoryType": "DHI.Services.Provider.MC.DocumentRepository, DHI.Services.Provider.MC",
        "Name": "MIKE OPERATIONS document connection",
        "Id": "mc-doc"
    },

Count¶

Gets the number of documents in the document manager.

http://localhost:8181/api/document/mc-doc/count

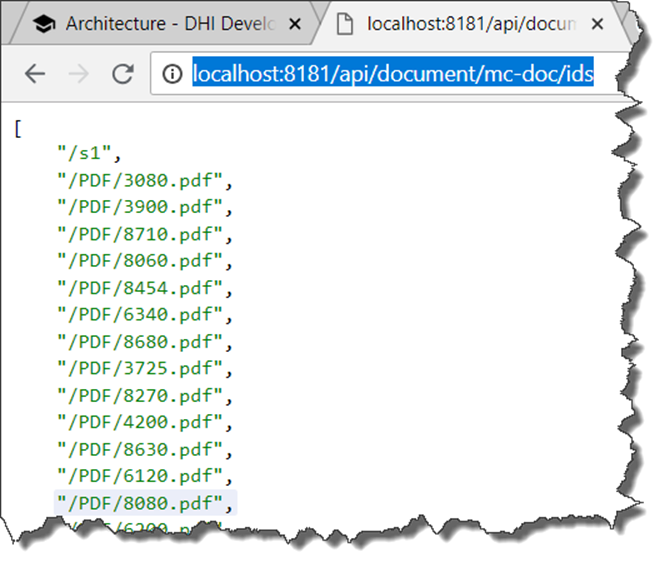

Get ids¶

Gets the full paths of all documents of the document manager.

http://localhost:8181/api/document/mc-doc/ids

Get document¶

Gets the document stream from the full path of the document in the document manager.

http://localhost:8181/api/document/mc-doc/PDF|3080.pdf

Table Repository¶

Version: 10.1

The TableRepository allows querying the MIKE OPERATIONS database directly. The URL are converted to SQL queries executed directly on the database.

Note

Note that the TableRepository currently only supports PostgreSQL databases.

Connection¶

Add the following section to the connections.json file, changing the connections string specifying host, database etc.

    "mc-table": {
        "$type": "DHI.Services.Tables.Web.TableServiceConnection, DHI.Services.Tables.Web",
        "ConnectionString": "runtimeconfig=OperationsWeb;host=localhost;port=5432;database=Sava93;refreshinterval=0",
        "RepositoryType": "DHI.Services.Provider.MC.TableRepository, DHI.Services.Provider.MC",
        "Name": "MIKE WORKBENCH table connection",
        "Id": "mc-table"
    },

Table Count¶

Gets the number of tables in the workspace (default workspace1) of the connection.

http://localhost:8181/api/table/mc-table/count

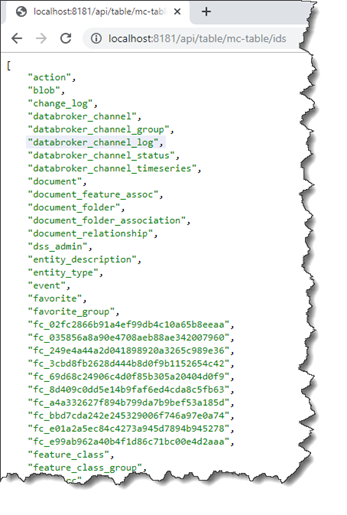

Table Names¶

List all tables in the database specified by the connection. Default schema is workspace1.

http://localhost:8181/api/table/mc-table/ids

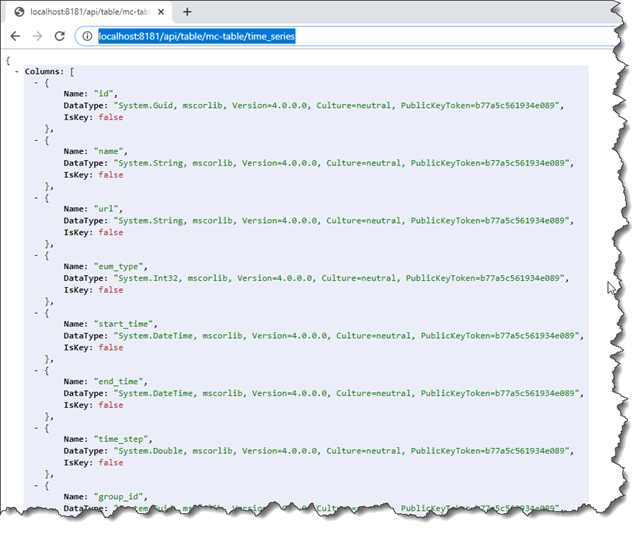

Table Columns¶

To get column information available for a table specify the table name.

http://localhost:8181/api/table/mc-table/<table name>

The column information contains information about column name and column type.

E.g http://localhost:8181/api/table/mc-table/time_series

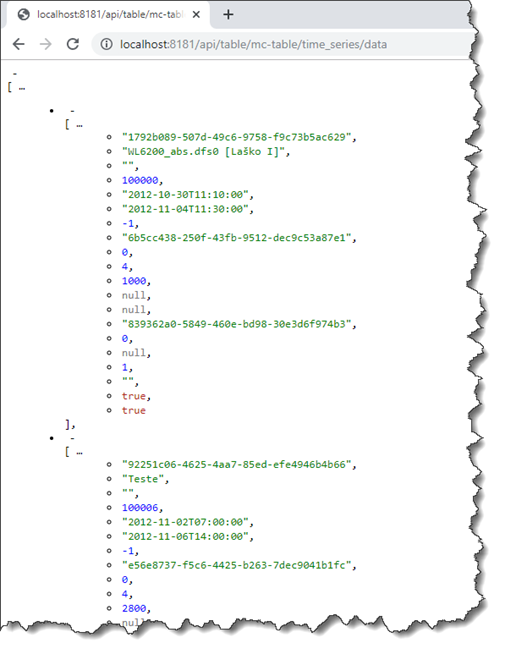

Table data¶

To get data of a table, extend the call to get column information with data.

To get every row in the table use:

http://localhost:8181/api/table/mc-table/<table name>/data

E.g. http://localhost:8181/api/table/mc-table/time_series/data

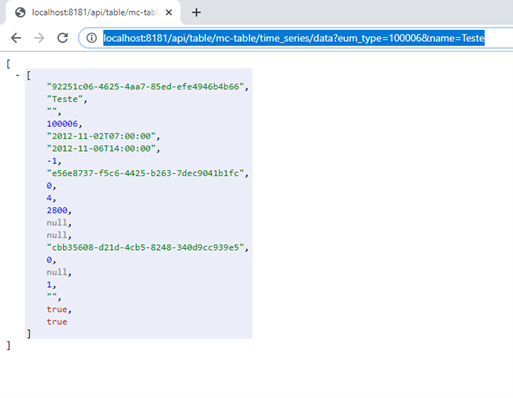

To get a subset of the table, specify parameters after data using ?<column_name=<value>.

Note that column name id is a reserved keyword. Use entityid instead of id for columns named id.

E.g. http://localhost:8181/api/table/mc-table/time_series/data?eum_type=100006&name=Teste

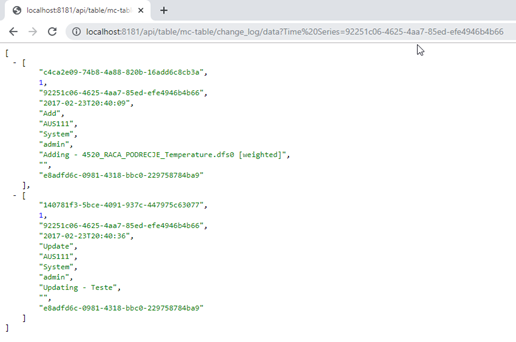

When querying the change_log table

When querying the change_log table, use the following type of call:

http://localhost:8181/api /table/mc-table/change_log/data?<entity type>=<entity id>

E.g. http://localhost:8181/api/table/mc-table/change_log/data?Time Series=92251c06-4625-4aa7-85ed-efe4946b4b66

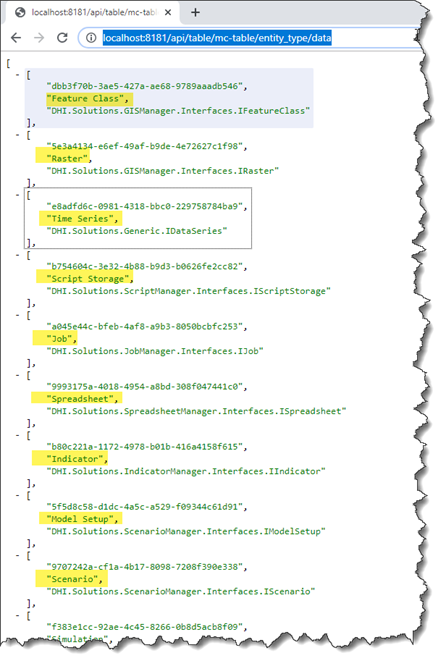

Entity types supported can be found in the entity_type table.

Use http://localhost:8181/api/table/mc-table/entity_type/data
